| Mfg. Part # | Mfg. Name | CAGE | RNCC | RNVC | ISC | MSDS | SADC | DAC | HCC |
|---|---|---|---|---|---|---|---|---|---|
| 54291-4-8 | SPS TECHNOLOGIES, LLC | 56878 | 3 | 2 | 2 | ||||
| HT4N-8 | SPS TECHNOLOGIES, LLC | 73197 | 3 | 2 | 2 | ||||
| HT4N-8 | SPS TECHNOLOGIES, LLC | L4528 | 3 | 2 | 2 | ||||
| HT1029A4-8 | SPS TECHNOLOGIES, LLC | 6950 | C | 1 | 2 | 9X | |||
| 54291-4-8 | SPS TECHNOLOGIES, LLC | 50392 | 5 | 9 | 2 | ||||
| HT1029A4-8 | SPS TECHNOLOGIES, LLC | 92215 | 5 | 9 | 2 | ||||

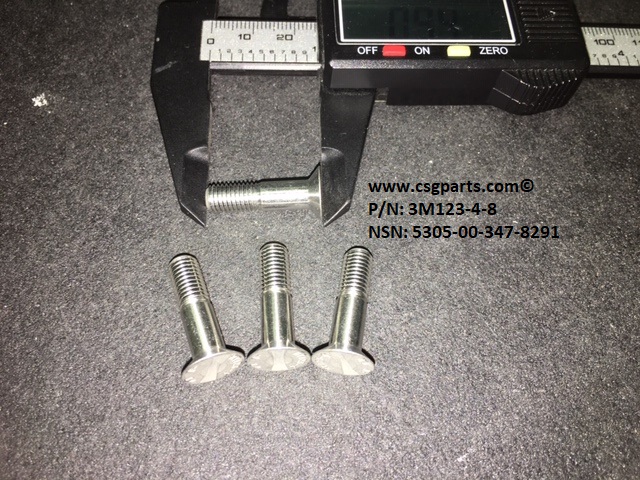

| 3M123-4-8 | SPS TECHNOLOGIES, LLC | 76301 | 3 | 2 | 2 |
| MRC | Requirement Statement | Characteristics |
|---|---|---|
| CRSQ | COUNTERSINK ANGLE | 100.0 DEGREES MINIMUM |
| AASB | FASTENER LENGTH | 0.953 INCHES MINIMUM AND 1.000 INCHES MAXIMUM |
| AAUR | GRIP DIAMETER | 0.2490 INCHES MINIMUM AND 0.2495 INCHES MAXIMUM |
| ANEE | GRIP LENGTH | 0.490 INCHES MINIMUM AND 0.510 INCHES MAXIMUM |
| AASL | HEAD DIAMETER | 0.501 INCHES MINIMUM AND 0.506 INCHES MAXIMUM |
| AASK | HEAD STYLE | FLAT COUNTERSUNK |
| MATT | MATERIAL | STEEL CORROSION RESISTING OVERALL |
| AHYM | NOMINAL THREAD DIAMETER | 0.250 INCHES |
| ABQZ | INTERNAL DRIVE STYLE | HIGH-TORQUE |
| THSD | THREAD SERIES DESIGNATOR | UNF |
| CSYM | SURFACE FINISH | 32.0 MICROINCHES GRIP |
| CSYM | SURFACE FINISH | 32.0 MICROINCHES THREADS |
| AAJD | THREAD CLASS | 3A |
| AAJF | THREAD DIRECTION | RIGHT-HAND |
| AASA | THREAD LENGTH | 0.443 INCHES MINIMUM AND 0.510 INCHES MAXIMUM |
| CMLP | THREAD QUANTITY PER INCH | 28 |
