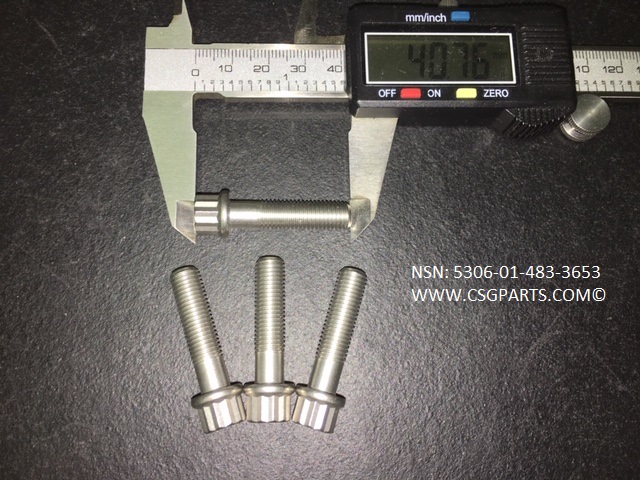

| MRC |
Requirement Statement |
Characteristics |
| AGAV |
END ITEM IDENTIFICATION |
1055-01-450-4243 |
| AATC |
EXTENDED WASHER DIAMETER |
0.500 INCHES NOMINAL |
| AATD |
EXTENDED WASHER THICKNESS |
0.070 INCHES MINIMUM |
| AASB |
FASTENER LENGTH |
1.312 INCHES NOMINAL |
| AAUR |
GRIP DIAMETER |
0.280 INCHES MINIMUM AND 0.290 INCHES MAXIMUM |
| ANEE |
GRIP LENGTH |
0.378 INCHES MINIMUM AND 0.438 INCHES MAXIMUM |
| CQFM |
HARDNESS RATING |
24.0 ROCKWELL C MINIMUM OVERALL AND 35.0 ROCKWELL C MAXIMUM OVERALL |
| AASU |
HEAD HEIGHT |
0.348 INCHES NOMINAL |
| AASK |
HEAD STYLE |
DOUBLE HEXAGON W/HOLE |
| MATT |
MATERIAL |
IRON ALLOY 660 OVERALL |
| CQBC |
MINIMUM TENSILE STRENGTH |
130000 POUNDS PER SQUARE INCH |
| CQHQ |
MINIMUM YIELD STRENGTH |
85000 POUNDS PER SQUARE INCH |
| AHYM |
NOMINAL THREAD DIAMETER |
0.312 INCHES |
| MDCL |
MATERIAL DOCUMENT AND CLASSIFICATION |
AMS 5731-85 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| THSD |
THREAD SERIES DESIGNATOR |
UNJF |
| AATB |
WIDTH BETWEEN FLATS |
0.375 INCHES NOMINAL |
| AAJD |
THREAD CLASS |
3A |
| AAJF |
THREAD DIRECTION |
RIGHT-HAND |
| AASA |
THREAD LENGTH |
0.874 INCHES MINIMUM AND 0.934 INCHES MAXIMUM |
| CMLP |
THREAD QUANTITY PER INCH |
24 |
