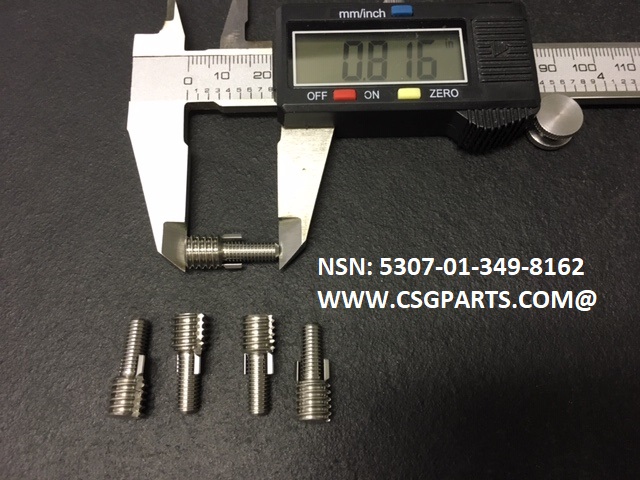

| MRC |
Requirement Statement |
Characteristics |
| CRZF |
DISTANCE FROM END OF STUD END THREADS TO NUT END |
0.500 INCHES NOMINAL |
| AGAV |
END ITEM IDENTIFICATION |
PACER DAWN |
| MATT |
MATERIAL |
IRON ALLOY 660 |
| CQJX |
NOMINAL THREAD SIZE |
0.190 INCHES NUT THREAD0.313 INCHES STUD THREAD |
| AAUM |
LOCKING FEATURE |
RING, LOCK KEYED |
| MDCL |
MATERIAL DOCUMENT AND CLASSIFICATION |
AMS 5734 A-286 CRES ASSN STD SINGLE MATERIAL RESPONSE |
| ABHP |
OVERALL LENGTH |
0.797 INCHES MINIMUM AND 0.827 INCHES MAXIMUM |
| THSD |
THREAD SERIES DESIGNATOR |
UNJF NUT THREADUNC STUD THREAD |
| STYL |
STYLE DESIGNATOR |
LOCKED IN |
| STDC |
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION |
QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| SFTT |
SURFACE TREATMENT |
PASSIVATE OVERALL |
| AAJD |
THREAD CLASS |
3A NUT THREAD2A STUD THREAD |
| AAJF |
THREAD DIRECTION |
RIGHT-HAND NUT THREADRIGHT-HAND STUD THREAD |
| AASA |
THREAD LENGTH |
0.380 INCHES MINIMUM NUT THREAD AND 0.440 INCHES MAXIMUM NUT THREAD0.297 INCHES MINIMUM STUD THREAD AND 0.327 INCHES MAXIMUM STUD THREAD |
| CMLP |
THREAD QUANTITY PER INCH |
32 NUT THREAD18 STUD THREAD |
