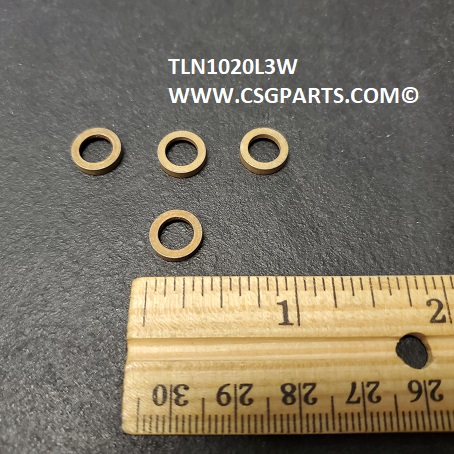

| MRC |
Requirement Statement |
Characteristics |
| CQFM |
HARDNESS RATING |
38.0 ROCKWELL C MINIMUM AND 44.0 ROCKWELL C MAXIMUM |
| HEAT |
HEAT TREATMENT |
AS FABRICATED |
| AAUB |
HOLE DIAMETER |
0.252 INCHES MINIMUM AND 0.258 INCHES MAXIMUM |
| MDCL |
MATERIAL DOCUMENT AND CLASSIFICATION |
MIL-S-6049 MIL SPEC 1ST MATERIAL RESPONSE OVERALL OR MIL-S-6050 MIL SPEC 2ND MATERIAL RESPONSE OVERALL OR MIL-S-6758 MIL SPEC 3RD MATERIAL RESPONSE OVERALL OR MIL-S-18729 MIL SPEC 3RD MATERIAL RESPONSE OVERALL OR ASTM A322 ASSN STD 4TH MATERIAL RESPONSE O |
| ABPX |
MATERIAL THICKNESS |
0.078 INCHES MINIMUM AND 0.088 INCHES MAXIMUM |
| MATT |
MATERIAL |
STEEL COMP 8740 OVERALL OR STEEL COMP 8630 OVERALL OR STEEL COMP 4130 OVERALL OR STEEL COMP 4027 OVERALL |
| ABKV |
OUTSIDE DIAMETER |
0.375 INCHES MINIMUM AND 0.385 INCHES MAXIMUM |
| ABGG |
RADIUS |
0.235 INCHES MINIMUM AND 0.240 INCHES MAXIMUM |
| ABMH |
RECESS DEPTH |
0.040 INCHES MINIMUM AND 0.050 INCHES MAXIMUM |
| ZZZK |
SPECIFICATION/STANDARD DATA |
81205-BACW10AU MANUFACTURERS STANDARD |
| STYL |
STYLE DESIGNATOR |
CONCAVE |
| CSYM |
SURFACE FINISH |
63.0 MICROINCHES COUNTERBORE WALL |
| STDC |
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION |
QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| SFTT |
SURFACE TREATMENT |
CADMIUM OVERALL AND CHROMATE OVERALL |
