| Mfg. Part # | Mfg. Name | CAGE | RNCC | RNVC | ISC | MSDS | SADC | DAC | HCC |
|---|---|---|---|---|---|---|---|---|---|

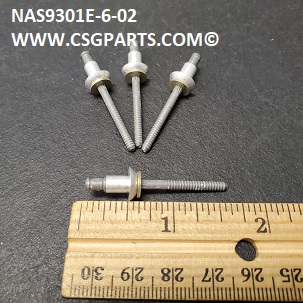

| NAS9301E-6-02 | NATIONAL AEROSPACE STANDARDS | 80205 | 3 | 2 | 5 | ||||
| CR3223-6-2 | NATIONAL AEROSPACE STANDARDS | 11815 | 3 | 2 | 5 |
| MRC | Requirement Statement | Characteristics |
|---|---|---|
| ABAF | EXPANSION DEVICE | PLAIN STEM-TYPE T |
| AASB | FASTENER LENGTH | 0.262 INCHES NOMINAL |
| ANEE | GRIP LENGTH | 0.063 INCHES MINIMUM AND 0.125 INCHES MAXIMUM |
| AASU | HEAD HEIGHT | 0.090 INCHES MAXIMUM |
| AAZG | HEAD MAJOR DIAMETER | 0.356 INCHES MINIMUM AND 0.394 INCHES MAXIMUM |
| AASK | HEAD STYLE | UNIVERSAL |
| MATT | MATERIAL | ALUMINUM ALLOY 5056 SLEEVE |
| MATT | MATERIAL | STEEL COMP 632 STEM |
| AAZE | SHANK DIAMETER | 0.188 INCHES MINIMUM AND 0.192 INCHES MAXIMUM |
| AAZF | SHANK STYLE | SELF-PLUGGING MECHANICALLY LOCKED STEM |
| SFTT | SURFACE TREATMENT | CADMIUM STEM |
| SFTT | SURFACE TREATMENT | CHROMATE SLEEVE |
