5325-00-017-6414, 5325000176414 NSN Information

3500-325-45-AS1B
Request for Quote

Manufacturer Part Number(s):

FSC NIIN ITEM NAME

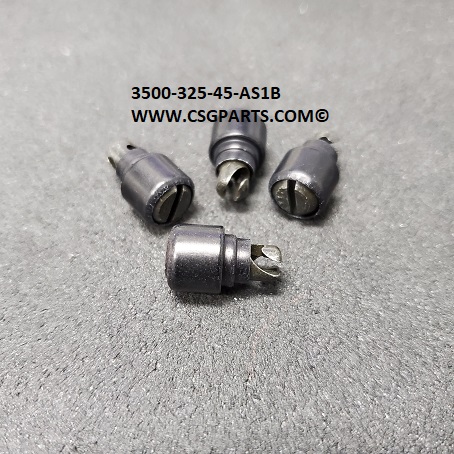

5325 000176414 STUD ASSEMBLY,TURNLOCK FASTENER
INC ESDC HMIC


5325-00-017-6414 MCRD (Master Cross Reference Data)

Mfg. Part # Mfg. Name CAGE RNCC RNVC ISC MSDS SADC DAC HCC
3500-325-45-AS1B SOUTHCO HONEOYE FALLS AEROSPACE 72794 3 2 2
1936444-1 SOUTHCO HONEOYE FALLS AEROSPACE 55972 3 2 2
BH-5903 SOUTHCO HONEOYE FALLS AEROSPACE 61349 3 2 2
PFSC3-1-2-38ABL SOUTHCO HONEOYE FALLS AEROSPACE 72794 C 1 2 AC
DM1400-6A1 SOUTHCO HONEOYE FALLS AEROSPACE 97928 C 1 2 AC
BACS21F7-38 SOUTHCO HONEOYE FALLS AEROSPACE 77272 C 1 2 AC
135273-1 SOUTHCO HONEOYE FALLS AEROSPACE 37695 5 2 2
D1400-6A1 SOUTHCO HONEOYE FALLS AEROSPACE 97928 5 9 2
P3 1-4-45 SOUTHCO HONEOYE FALLS AEROSPACE 72794 5 9 2
P3-1-4-45 SOUTHCO HONEOYE FALLS AEROSPACE 72794 5 9 2
BACS21DD1 SOUTHCO HONEOYE FALLS AEROSPACE 77272 5 9 2
D1400-6A1 SOUTHCO HONEOYE FALLS AEROSPACE 0HDW7 5 9 2
3500-325-45-C3C SOUTHCO HONEOYE FALLS AEROSPACE 72794 5 9 2
P325-45 SOUTHCO HONEOYE FALLS AEROSPACE 72794 5 9 2
X-939 SOUTHCO HONEOYE FALLS AEROSPACE 72794 5 9 2

5325-00-017-6414 Characteristics

MRC Requirement Statement Characteristics
AGRF DISTANCE FROM ENGAGING MEMBER TO LARGEST BEARING SURFACE OF HEAD 0.595 INCHES MINIMUM AND 0.675 INCHES MAXIMUM
AKCV DRIVE TYPE SLOTTED
ABMZ DIAMETER 0.365 INCHES MINIMUM AND 0.385 INCHES MAXIMUM
AGRK EYELET LENGTH 0.148 INCHES NOMINAL
AGRH EYELET OUTSIDE DIAMETER 0.365 INCHES MINIMUM AND 0.385 INCHES MAXIMUM
MDCL MATERIAL DOCUMENT AND CLASSIFICATION MIL-S-8695 MIL SPEC SINGLE MATERIAL RESPONSE STUD
MDCL MATERIAL DOCUMENT AND CLASSIFICATION QQ-A-225/8 FED SPEC SINGLE MATERIAL RESPONSE HEAD
MDCL MATERIAL DOCUMENT AND CLASSIFICATION QQ-A-225/8 FED SPEC SINGLE MATERIAL RESPONSE RECEPTACLE
MDCL MATERIAL DOCUMENT AND CLASSIFICATION QQ-W-470 FED SPEC SINGLE MATERIAL RESPONSE LOCKSPRING
MATT MATERIAL ALUMINUM ALLOY 6061 HEAD
MATT MATERIAL ALUMINUM ALLOY 6061 RECEPTACLE
MATT MATERIAL STEEL COMP 4037 STUD
MATT MATERIAL STEEL LOCKSPRING
AGSM MATERIAL ACCOMMODATED THICKNESS 0.062 INCHES NOMINAL
AGRD TURNLOCK STUD HEAD STYLE FILLISTER
AGRE STUD ASSEMBLY STYLE STUD ASSEMBLY
AGRJ STUD DIAMETER 0.193 INCHES MINIMUM AND 0.203 INCHES MAXIMUM
STDC SURFACE TREATMENT DOCUMENT AND CLASSIFICATION MIL-A-8625 MIL SPEC SINGLE TREATMENT RESPONSE HEAD
STDC SURFACE TREATMENT DOCUMENT AND CLASSIFICATION MIL-A-8625 MIL SPEC SINGLE TREATMENT RESPONSE RECEPTACLE
STDC SURFACE TREATMENT DOCUMENT AND CLASSIFICATION QQ-P-416,TYPE 1,CLASS 2 FED SPEC SINGLE TREATMENT RESPONSE LOCKSPRING
STDC SURFACE TREATMENT DOCUMENT AND CLASSIFICATION QQ-P-416,TYPE 2,CLASS 2 FED SPEC SINGLE TREATMENT RESPONSE STUD
SFTT SURFACE TREATMENT ANODIZE HEAD
SFTT SURFACE TREATMENT ANODIZE RECEPTACLE
SFTT SURFACE TREATMENT CADMIUM LOCKSPRING
SFTT SURFACE TREATMENT CADMIUM STUD
